38431-4R 0-8 Hours 240VAC Last Chance

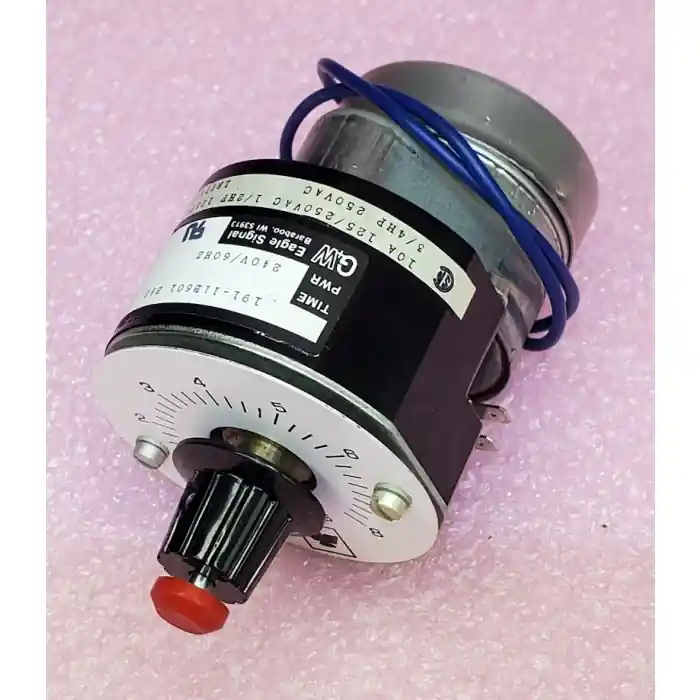

EAGLE SIGNAL / DANAHER – 191-11B601 B82 – 0-8 HOUR TIMER

For over 70 years, Eagle Signal has been the leading supplier of timer solutions for a range of industrial applications all over the world.The Model 191 is a push-button start, motor driven timer with cycle progress pointer, double make-double break snap action switch and is used to energize a load for a preset time period. The pushbutton is located in the center of the time set pointer knob on the panel mounted dial. When depressed momentarily, a mechanical latch and switch is engaged, starting the motor and timing period. After completion of timing, switch 3 and 4 open, 1 and 2 close, motor stops, and timer resets to setpoint. Timer is now ready for another timing operation.

Voltage: 120/240VAC 60Hz, 1/2hP 125VAC, 3/4HP 250VAC

Current Rating: 10A

Repeat Accuracy: 1.5% of Full Scale

Termination: Motor – Loose Leads, 20 Ga., 6″ long stripped 5/8″

Termination Switch: .188 x .250 x .020 Quick Connect Tabs

LR27967

PUSH BUTTON AUTO-RESET TIMERDANAHER

GW-EAGLE SIGNAL INDUSTRIAL CONTROLS

Approvals: UL, CSA

Made in USA

Manufacturer’s Specification In Package.

New Old Stock
