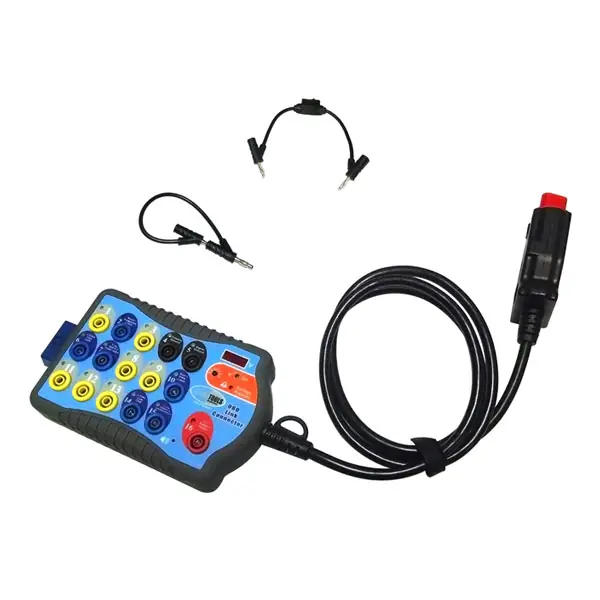

Baum Tools | OBD2-BOB | Mercedes J1962 OBD II Break Out Box Exclusive

Specifications

• Manufacturer: Baum Tools
• Model Number: OBD2-BOB
• Part Number: OBD2-BOB
• Compatibility: Mercedes-Benz vehicles equipped with J1962 OBD II diagnostic port
• Weight: 1 lbs
• Dimensions: 0 x 0 x 0 inches

Key Features

• J1962 OBD II Interface: Connects directly to the vehicle’s diagnostic port, providing access to all 16 pins.
• Individual Pin Access: Allows for isolated testing and monitoring of each pin on the OBD II connector.
• Robust Construction: Engineered for durability and reliable performance in professional automotive environments.
• Dedicated Mercedes Application: Specifically designed to integrate with Mercedes-Benz diagnostic procedures and systems.

Applications

• Diagnostic Troubleshooting: Identify and resolve complex electrical and communication faults within the OBD II system.
• CAN Bus Analysis: Monitor and test CAN High, CAN Low, K-Line, and other communication protocols.
• Circuit Verification: Test power supply, ground connections, and signal integrity at the diagnostic port.
• External Device Integration: Facilitates safe connection of multimeters, oscilloscopes, and other diagnostic tools for advanced analysis.
• Module Programming Support: Aids in maintaining stable connections and monitoring during ECU flashing or programming procedures.

Benefits

• Precise Fault Isolation: Enables technicians to accurately pinpoint wiring issues or communication problems, reducing diagnostic guesswork.
• Time-Efficient Diagnostics: Streamlines the troubleshooting process, accelerating vehicle repair and service times.
• Enhanced System Protection: Helps prevent damage to vehicle ECUs and diagnostic equipment by allowing controlled testing.
• Versatile Testing Capabilities: Supports a broad spectrum of diagnostic and testing procedures for comprehensive vehicle analysis.
• Improved Workflow: Provides clear, accessible test points, making electrical measurements and signal analysis more efficient and reliable.
