Don’t Miss Out Magna-Spot 2500 Top-Pro Stud Welder Kit – 240V – Motor Guard

Specifications

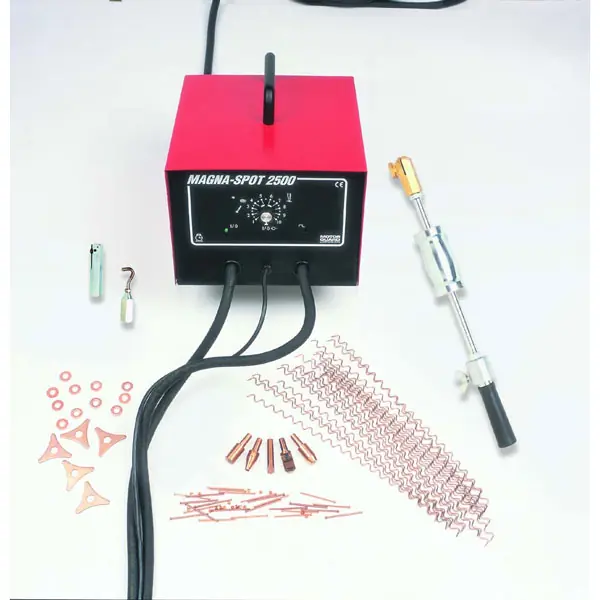

The Motor Guard Magna-Spot 2500 Top-Pro Stud Welder Kit, model JO2500, operates on a 240V electrical rating. It weighs 68.15 lbs and has dimensions of 18.5 x 17.5 x 13 inches. This kit includes a Magna-Spot 2500 Weld Controller, a heavy-duty energized slide hammer, and seven electrodes. Also supplied are a hook nosepiece for standard washers and a standard nosepiece for pins. For immediate use, the kit provides 250 2.0mm and 2.5mm draw pins, 100 trim rivets, 10 star washers, 100 standard washers, and 1/2 lb. of 16 gauge Magna Wire. Manufactured in the U.S.A., the product comes with a Five-Year Limited Warranty.

Key Features

The Magna-Spot 2500 Top-Pro Stud Welder Kit offers electronically controlled, high power for comprehensive dent repair solutions. It is equipped to weld Star Washers using an exclusive Energized Slide Hammer, in addition to welding draw pins, round washers, rivets, and Magna Wire. This unit can shrink stressed material and perform single-sided spot welding. Featuring exclusive Low-Heat technology, it is specifically designed for modern high-strength steel unibody vehicles. The design virtually eliminates ‘burn-through,’ a common issue with other models. Its construction boasts a lightweight, ergonomic design with heavy-duty components, ensuring low-heat transfer and high reliability. The Magna Pin System (MPS) provides a secure and convenient holder for pins on both the case and the electrode tip.

Applications

The Motor Guard Magna-Spot 2500 Top-Pro Stud Welder Kit is widely used in automotive body repair and restoration. It is highly effective for quickly removing and correcting dents in vehicle body panels without requiring invasive procedures. This system is particularly well-suited for working with high-strength steel unibody vehicles. Beyond dent pulling, it facilitates various sheet metal applications by allowing the welding of studs, washers, and tabs.

Benefits

This stud welder kit significantly reduces repair time by allowing fast and efficient dent removal. It enables dent repairs without drilling holes, preserving the integrity of the panel and eliminating the need to remove interior trim. The resulting welds are stronger than the surrounding base metal, ensuring durable repairs. The Low-Heat technology prevents burn-through, even on challenging or awkward dents. Its ability to perform one-sided welding ensures no damage or marks on the reverse side of the material, which is crucial for thinner panels. The kit minimizes preparation work before repainting, streamlining the repair process. Electronically controlled precision delivers consistent and repeatable weld quality. The robust and reliable construction provides consistent and clean work, making it a dependable tool for professional body shops.
