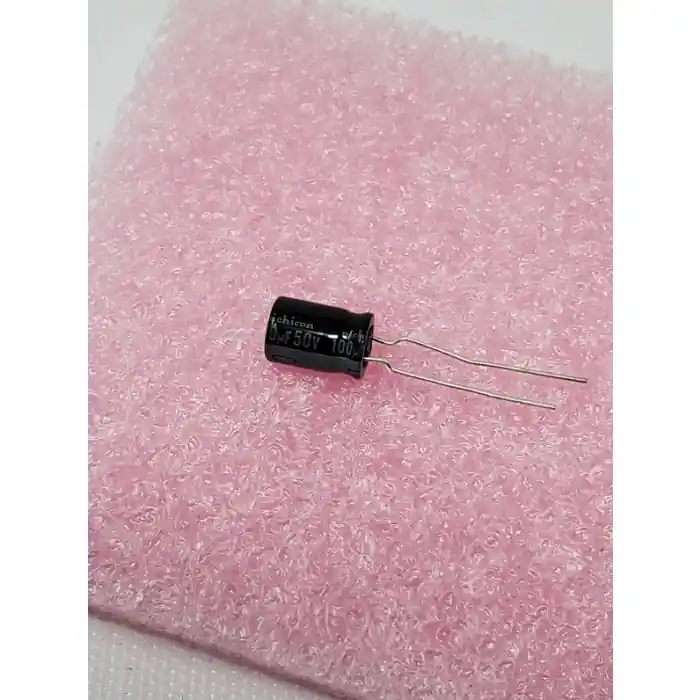

Don’t Miss Out NICHICON - UVR1H101MPD1TA - Capacitor, Electrolytic. 100uF 50V. Package or 10
Home / Electrical / Don’t Miss Out NICHICON – UVR1H101MPD1TA – Capacitor, Electrolytic. 100uF 50V. Package or 10

Don’t Miss Out NICHICON – UVR1H101MPD1TA – Capacitor, Electrolytic. 100uF 50V. Package or 10

Original price was: $2.98.Current price is: $1.49.

For orders under $59.00, a shipping fee of $12.99 applies.

SKU: SK0010976-US20260109-115055 Category: Tag:
Share

NICHICON – UVR1H101MPD1TA Capacitor, Electrolytic.

100uF 50V.

Tolerance: 20%.

Material: Aluminum.

Package: Radial.

Operating temperature: -40 to 85 Deg C.

Capacitance: 100 µF

Dissipation Factor: 0.12 %

Leakage Current: 150 µA

Life (Hours): 2000 hours

Ripple Current: 260 mA

Voltage Rating: 50 V, Voltage Rating (DC): 50 V

Dimensions: Diameter 8 mm, Height 11.5 mm, Height – Seated (Max) 11.5062 mm

Lead Diameter: 600 µm, Lead Pitch: 5 mm, Length 11.5 mm

The following parts have similar specifications: Panasonic ECA-1JM101, ECA-1VM101, Nichicon

UVR1V101MED1TA, UFW1V101MED, PS1V101MPD1TD

Dimensions: .315″ D round x .453″ tall.

PCB free design.

RoHS.

Package of 10
