Firepower | 0558012702 | ESAB REBEL EMP 235ic Genuine

Specifications

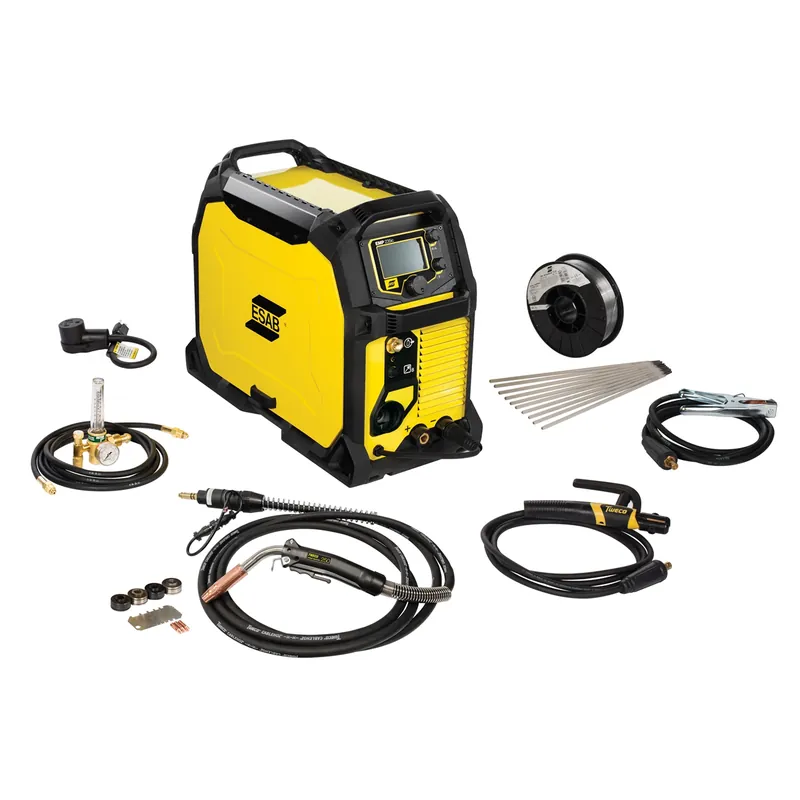

The Firepower ESAB REBEL EMP 235ic 0558012702 is a versatile, multi-process welding machine with a compact design. It weighs 53 lbs (24 kg) and measures 26.5 x 11.5 x 19.5 inches (686 x 292 x 495 mm). This unit operates on dual voltage, accepting inputs from 90-270 VAC, single-phase, 50/60 Hz.

Output capabilities include:

• MIG (GMAW): Up to 250A maximum output. At 230V, it delivers 235A/26V at a 40% duty cycle, and 160A at a 100% duty cycle.
• Stick (SMAW/MMA): At 230V, it provides 210A/28.4V at a 40% duty cycle, and 130A at a 100% duty cycle.
• TIG (GTAW-DC): At 230V, it reaches 240A/19.6V at a 40% duty cycle, and 170A at a 100% duty cycle.

The machine supports a wire feed speed range of 1.5-18 m/min (60-700 in./min). It is compatible with solid wire diameters from 0.023 to 0.045 inches (0.6 to 1.2 mm) and cored wire diameters up to 0.052 inches (1.4 mm). It handles stick electrodes up to 5/32 inches (4.0 mm) and TIG rods up to 3/16 inches (5.0 mm). The ESAB REBEL EMP 235ic is designed to accommodate 4, 8, and 12-inch wire spools. It features an IP23S protection class and comes with a 3-year warranty.

Key Features

The ESAB REBEL EMP 235ic is engineered with advanced functionalities for professional welding.

• True Multi-Process Capability: This welder offers excellent performance across MIG/MAG, Flux-Cored, Stick/MMA, and DC TIG welding processes, providing comprehensive versatility.
• sMIG Technology: The innovative "smart-MIG" feature dynamically monitors arc characteristics and adapts to the user’s welding technique, resulting in a smooth, stable arc. Users can set wire diameter and plate thickness to begin welding efficiently.
• Dual Voltage Adaptability: With dual voltage input ranging from 90V to 270V, the machine adapts to various power supplies, enhancing its utility in diverse work environments.
• High Portability: Weighing only 53 lbs (24 kg) and featuring a rugged 4-handle roll cage, the unit is designed for easy transport and can be detached from its cart for mobility around the job site.
• Intuitive User Interface: A large, multilingual TFT screen provides clear access to menus, spare part lists, and weld parameter guides for all processes.
• Parameter Storage: The system allows for saving up to four preset welding settings per process, streamlining repetitive tasks.
• Integrated Gas Management: Two gas inlets permit simultaneous connection for MIG and TIG processes. A built-in TIG gas solenoid valve on the front eliminates the need for a manual valve on the TIG torch.
• Enhanced Arc Control: Includes Hot Start and Arc Force for Stick welding, and Voltage Trim, Inductance, Burn Back, and Pre-flow/Post-flow adjustments for MIG welding. Lift Arc functionality is available for TIG welding.
• Aluminum Welding Capability: This machine is capable of welding aluminum, extending its range of applications.

Applications

The ESAB REBEL EMP 235ic is suitable for a broad spectrum of welding tasks in various professional and industrial settings.

• Fabrication: Ideal for industrial and general fabrication of structures, components, and assemblies.
• Repair and Maintenance: Used extensively in repair and maintenance operations across multiple industries, including agricultural equipment, automotive, and civil construction.
• Construction: Applicable in civil construction and HVAC for joining different metal types and thicknesses.
• Automotive: Utilized for vehicle repairs and modifications, offering precise control for various materials.
• Field Work: Its portability makes it well-suited for on-site jobs and field applications where mobility is crucial.
• Material Versatility: Capable of welding thin to medium gauge metals as well as thicker materials, including mild steel, stainless steel, and aluminum.

Benefits

The ESAB REBEL EMP 235ic delivers tangible advantages designed to optimize welding operations and improve user experience.

• Increased Productivity: The high amperage output and duty cycle enable continuous welding on demanding jobs and thick materials, leading to higher deposition rates and increased productivity.
• Simplified Operation: sMIG Technology automatically fine-tune welding parameters, reducing setup time and allowing both experienced and novice welders to achieve quality welds with ease. The user-friendly interface further simplifies operation.
• Operational Flexibility: True multi-process functionality allows users to switch between MIG, TIG, and Stick welding, providing the versatility needed for diverse projects and materials with a single machine. Dual voltage capability ensures power accessibility in various locations.
• Enhanced Mobility: The lightweight design and robust roll cage allow for effortless transportation between workstations or job sites, ensuring the welder is always where it is needed.
• Consistent Arc Quality: The machine produces a superb and stable arc across all welding processes, resulting in high-quality welds and reduced post-weld cleanup.
• Durability in Challenging Environments: Constructed with a rugged, unibody steel industrial housing and a protective roll cage, the welder withstands harsh conditions, ensuring long-term reliability.
