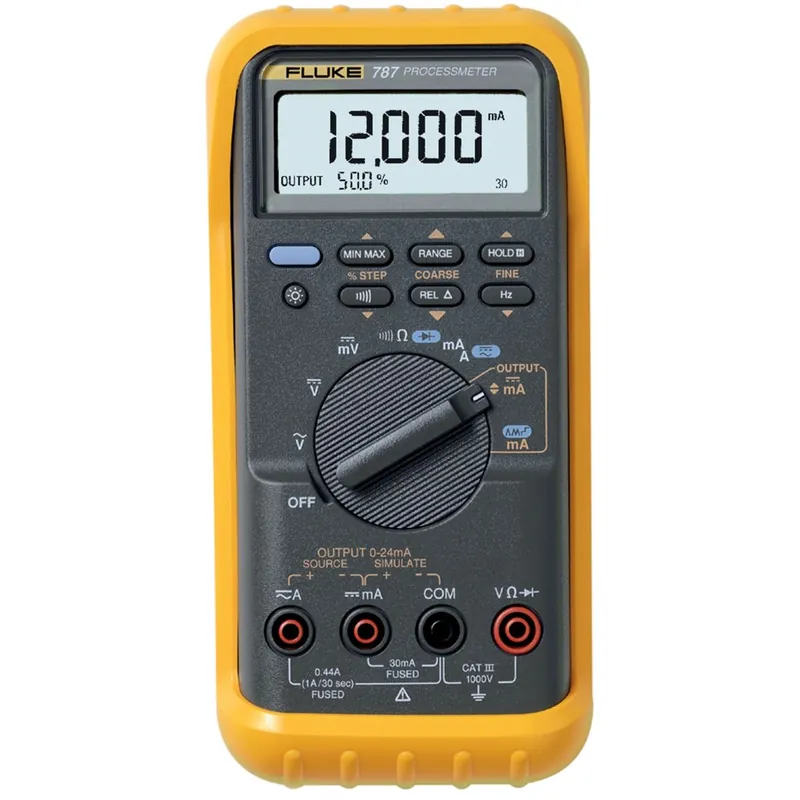

Fluke | 787 | Process Meter Diagnostic P-Tool 619913 Place Order

Specifications

The Fluke 787 Process Meter Diagnostic P-Tool 619913 combines the robust capabilities of a digital multimeter (DMM) with the precision of a loop calibrator in a single, handheld instrument.

• Manufacturer: Fluke
• Model Number: 787
• Weight: 4.75 lbs
• Dimensions (H x W x L): 1.25 x 3.41 x 7.35 inches
• Multimeter Type: Precision 1000V, 440 mA True-RMS Digital Multimeter.
• Voltage Measurement: Measures AC and DC volts up to 1000V. DC voltage accuracy is 0.1%.
• Current Measurement: Measures AC and DC current, including DC current with 0.05% accuracy and 1 microamp resolution up to 30 mA.
• Resistance Measurement: Measures resistance up to 40 M?.
• Frequency Measurement: Measures frequency up to 20 kHz.
• Display: Clear LCD with backlight, offering 4,000 counts for general measurements and 30,000 counts for DC current.
• Safety Rating: Designed to meet 1000V IEC 61010 CAT III standards.
• Environmental Durability: Features a rugged, dust- and splash-resistant, and EMI-shielded design. It is rated for a 1-meter drop test.
• Operating Temperature: -20 °C to 55 °C.
• Battery Life: Approximately 50 hours typical in measurement mode and 12 hours typical when sourcing 12 mA.

Key Features

The Fluke 787 Process Meter is engineered for comprehensive diagnostic and calibration tasks, integrating a wide range of functionalities.

• Dual Functionality: Integrates a digital multimeter and a 20 mA DC current loop calibrator into one portable device.
• Current Source/Measure/Simulate: Provides capabilities to source, measure, and simulate 20 mA DC current for testing process instruments.
• Simultaneous Readout: Offers simultaneous display of mA and percentage of scale readings, streamlining comparisons and analysis.
• Advanced mA Output Control: Features manual step functions (25%, Coarse, Fine) along with Auto Step and Auto Ramp capabilities for precise current output adjustments.
• Measurement Modes: Includes Min/Max/Average/Hold/Relative modes for analyzing signal variations over time.
• Continuity and Diode Testing: Equipped with a diode test function and a continuity beeper for quick circuit checks.
• Overload Protection: Features 1000V overload protection on voltage, ohms, and frequency functions, and 150V overload protection on mA, backed by a 440 mA 1000V fuse.
• Easy Battery Access: Designed with an externally accessible battery compartment for quick and convenient battery changes.

Applications

The Fluke 787 Process Meter is an essential diagnostic P-Tool for professionals across various industrial and process control environments.

• Process Control Systems: Ideal for diagnosing and maintaining critical components in process control systems, including PLCs, DCS, and SCADA systems.
• Industrial Automation: Used for troubleshooting and calibrating sensors, transmitters, and other automation equipment.
• Current Loop Troubleshooting: Provides comprehensive solutions for identifying and resolving issues within 4-20mA current loops.
• Instrument Calibration: Facilitates the calibration of a wide array of process instruments, ensuring accuracy and optimal performance.
• Maintenance and Field Service: A versatile tool for instrumentation technicians and maintenance personnel for routine checks, installation, and repair in industrial settings.

Benefits

The Fluke 787 Process Meter delivers tangible advantages, enhancing operational efficiency and accuracy for users.

• Streamlined Workflow: By combining a full-featured digital multimeter with a mA loop calibrator, the Fluke 787 eliminates the need to carry multiple tools, simplifying the technician’s toolkit and workflow.
• Enhanced Productivity: Technicians can perform both electrical measurements and loop calibration tasks efficiently, reducing diagnostic and repair times. The Auto Step and Auto Ramp functions further boost efficiency in calibration tasks.
• Accurate Diagnostics: Offers high-precision measurements and sourcing capabilities (0.05% DC current accuracy) crucial for reliable troubleshooting and calibration of sensitive process control systems.
• Cost-Effectiveness: Provides the functionality of two specialized tools at a comparable cost to a standalone loop calibrator, offering significant value.
• Durability and Reliability: Built to withstand demanding industrial environments, its rugged design ensures long-term performance and reduces the risk of equipment failure in the field.
