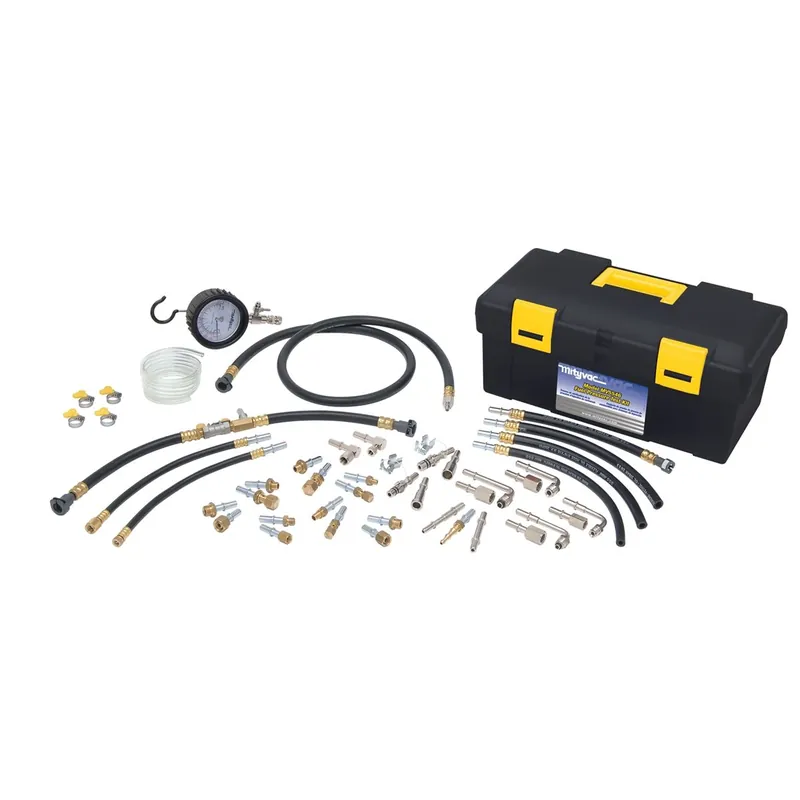

Hot Deal Mityvac MV5546 Fuel System Pressure Test Kit – Mityvac

Specifications

• Manufacturer: Mityvac
• Model Number: MV5546
• Weight: 12 lbs
• Dimensions: 17.6 inches (L) x 10.2 inches (W) x 8.2 inches (H)
• Gauge Scale: 0-120 PSI (0-8 BAR)
• Hose Length: 4 ft. (1.2 m) pressure test hose

Key Features

• Contains 37 adapters for pressure testing most US, Asian, and European manufactured vehicles.
• High-quality, heavy-duty 3.5-inch (90mm) gauge includes a protective rubber boot and a hanging hook.
• Features a push-button pressure relief valve for safe and controlled pressure discharge.
• Utilizes SAE certified, fuel-rated quick-connect fittings for reliable, easy connections and interchangeability.
• Packaged in a custom toolbox-style case for organized storage and transport.
• Easily upgrades to a fuel pressure and flow tester with the addition of the MVA5553 flowmeter upgrade kit.

Applications

• Tests fuel system pressure to diagnose common fuel system problems.
• Diagnoses failing fuel pumps and faulty pressure regulators.
• Identifies blocked fuel filters and pinched fuel lines.
• Detects low fuel pressure and leaking fuel injectors.
• Performs pressure testing on fuel injection systems equipped with suitable fuel pressure test ports (Schrader valve ports).
• Connects to and tests fuel injection systems with removable fuel pressure inlet lines using various adapters.

Benefits

• Accurate Diagnostics: Delivers precise fuel pressure readings up to 120 PSI, enabling quick and accurate identification of fuel system issues, which can reduce diagnostic time.
• Broad Vehicle Compatibility: The comprehensive 37-piece adapter set ensures the kit is compatible with a wide array of US, Asian, and European vehicles, making it a versatile tool for various automotive service needs.
• Enhanced Safety and Ease of Use: Designed with features like a protective rubber boot for the gauge, a push-button pressure relief valve, and SAE-certified quick-connects, ensuring safe, reliable, and straightforward operation during fuel system testing.
• Durability and Organization: Constructed with heavy-duty components and housed in a custom toolbox-style case, this kit is built for demanding workshop environments and ensures all components are securely organized and protected.
• Expandable Functionality: Provides the option to easily upgrade to a fuel pressure and flow tester with the MVA5553 kit, extending its diagnostic capabilities and increasing its long-term value.
