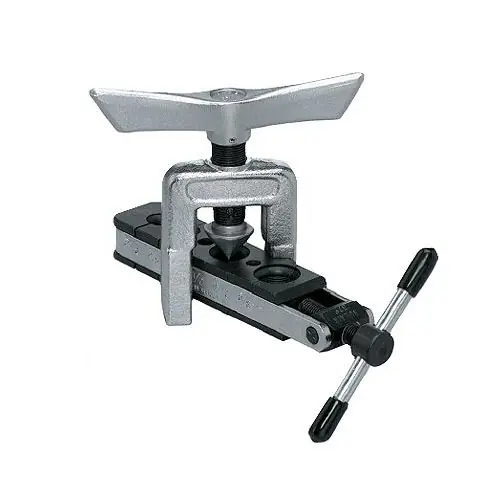

Imperial | 507-FB | 37 Degree Rol-Air Flaring Tool Modern

Specifications

• Manufacturer: Imperial
• Model Number: 507-FB
• Weight: 1.75 lbs
• Dimensions: 0 x 0 x 0 inches
• Flare Type: 37-degree single flare
• Flaring Mechanism: Rol-Air rolling action
• Tube Compatibility: Soft copper, aluminum, and brass tubing
• Tube Sizes: 3/16", 1/4", 5/16", 3/8", 1/2", and 5/8" O.D. tubing
• Finish: Satin chrome and black

Key Features

• Precision 37-Degree Flares: Designed to create accurate 37-degree single flares, essential for high-pressure systems and aerospace standards.
• Rol-Air Flaring Mechanism: Features a faceted, hard chrome-finished cone that rolls out and burnishes the flare face, maintaining original wall thickness at the flare’s base for enhanced strength.
• Optimized Operation: Includes a new slip-on yoke for access in tight spaces, a larger handle for improved leverage, and precision threads on the feed screw for smooth, effortless flaring.
• Secure Tubing Grip: Heat-treated dies firmly grip tubing during the flaring process, preventing slippage and scoring.
• Durable Construction: Built by Imperial, a trusted manufacturer, for reliability and long-term use in demanding environments.

Applications

• Ideal for creating secure, leak-proof connections in hydraulic systems, conforming to JIC (Joint Industrial Council) specifications.
• Suitable for aerospace and aviation tubing applications that require precise 37-degree flares, meeting standards such as AS4330 (formerly MS33584).
• Utilized in industrial fluid and gas systems where high-integrity, robust joints are critical.
• Applicable in specialized automotive systems, including performance fuel and brake lines, where 37-degree flare fittings are specified.
• Can be used in certain plumbing and HVAC applications requiring high-strength, leak-resistant connections.

Benefits

• Enhanced System Integrity: Produces precise 37-degree flares that are crucial for creating tight, leak-free connections in high-pressure applications.
• Increased Flare Durability: The Rol-Air rolling action forms flares that maintain original wall thickness, minimizing material stress and resulting in stronger, more durable connections less prone to cracking.
• Consistent, Effortless Performance: Delivers repeatable, high-quality flares with reduced physical effort due to the tool’s ergonomic design and precision components.
• Versatile Accessibility: The slip-on yoke design allows for convenient use in confined or challenging work areas.
• Professional Finish: The burnishing action of the cone polishes the flare face, ensuring a smooth, professional appearance while meeting stringent industry specifications.
