Specifications

• Manufacturer: TecMate
• Model Number: TS-91
• Power: Internal 7.2V NiMH rechargeable battery (6 hours autonomy); external 12V DC (11-15Vdc) input for power and recharging.
• Display: Dual LED bargraph displays (2 x 40 hi-bright LEDs).
• Primary Voltage Scales: 10Vpk, 40Vpk, 400Vpk.
• Secondary Voltage Scales: 10kV, 20kV, 40kV.
• Weight: 0 lbs
• Dimensions: 0 x 0 x 0 inches
• TS-91

Key Features

• Dual-Display Design: The TecMate TS-91 IgnitionMate simultaneously monitors and displays two distinct ignition signals on its bright LED bargraphs, enabling direct comparison for efficient troubleshooting.
• Comprehensive Measurement Capabilities: This ignition tester accurately measures primary low tension peak voltage, secondary high tension peak voltage, and spark current across various selectable scales.
• Non-Intrusive Testing: Conduct ignition system diagnosis without the need to disassemble components, which helps prevent accidentally introducing or correcting poor contacts that could confuse the diagnostic process.
• Robust Construction: Designed for durability, the unit features a rugged, rubberized protective and mounting holster. Its heat-resistant silicon test cables are built to withstand challenging automotive environments, including hot engines and exhausts.
• Rechargeable Power Source: Equipped with an internal 1.5Ah NiMH battery, the device offers up to 6 hours of autonomy and can be recharged from any 12VDC source, such as a vehicle battery or 12VDC adapter. An auto-off feature conserves battery life if no signal is measured.

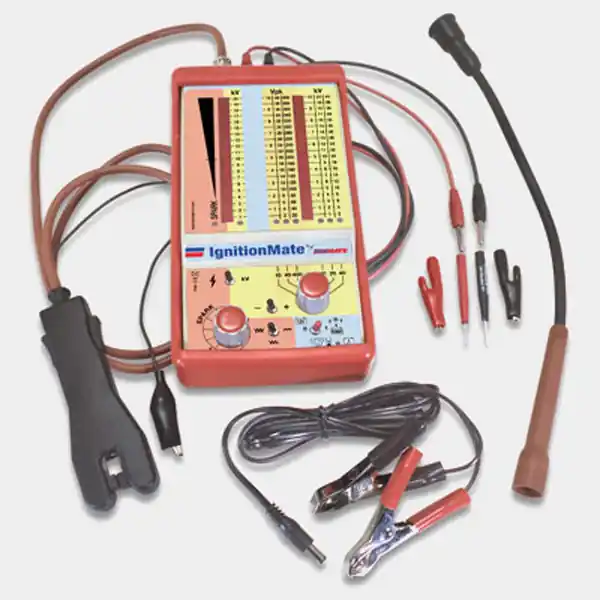

• Versatile Accessory Kit: The standard kit includes a combination spark cable caliper pick-up with silicon lead, a stick-coil adapter, a silicon test lead set with insulated crocodile clips, and special Probulator back probes, ensuring diverse connection capabilities.

Applications

• Automotive Diagnostics: This diagnostic tool is highly effective for troubleshooting spark ignition systems across a broad spectrum of vehicles, including motorcycles, ATVs, marine engines, and cars.
• Ignition System Analysis: Utilize the IgnitionMate to diagnose issues within various ignition types, such as AC CDI, DC CDI, transistor, magneto, and coil & points systems.
• Performance Troubleshooting: Quickly identify common ignition problems like misfires, inconsistent spark strength, and other anomalies to restore optimal engine performance and efficiency.
• On-Vehicle Testing: Facilitates dynamic, on-road testing, which is especially useful for tracing intermittent faults that may not manifest in a static workshop setting.

Benefits

• Accelerated Diagnostics: The TecMate TS-91 significantly reduces troubleshooting time by enabling quick and precise identification of ignition system faults, thereby enhancing workshop productivity.
• Damage Prevention: This specialized ignition tester is designed to safely measure fast, high-voltage ignition pulses, protecting sensitive digital multimeters from potential damage.
• Enhanced Accuracy: By providing peak voltage readings and dynamic LED displays, the IgnitionMate offers a more in-depth insight into the ignition system’s health compared to average value measurements.
• Increased Efficiency: Performing diagnostics without component disassembly streamlines the troubleshooting process, eliminates potential complications from disturbed contacts, and saves valuable labor time.
• Reliable Operation: Engineered for consistent and dependable performance in demanding professional environments, the product is supported by a 2-year limited warranty.
• User-Friendly Experience: Featuring clear LED displays and intuitive controls, the IgnitionMate ensures straightforward operation for technicians, even when analyzing complex ignition signals.
