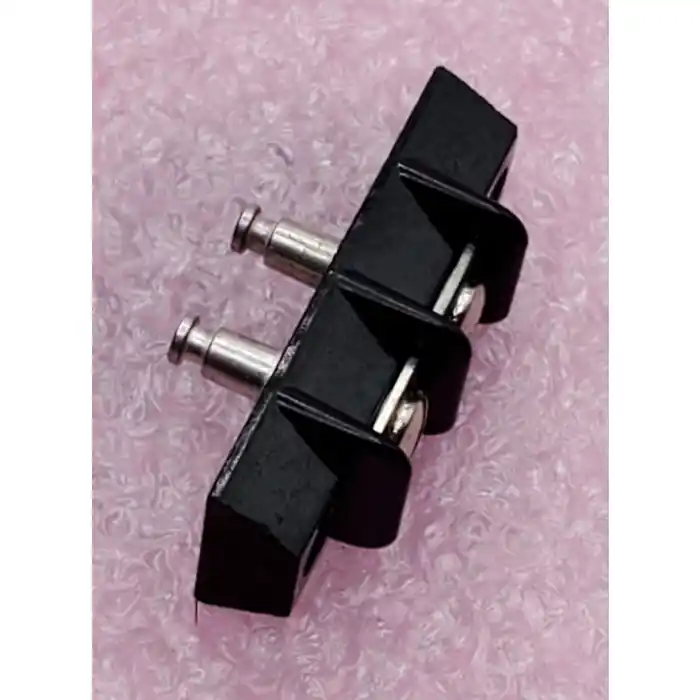

Marathon Kluka – 599GP200402PSB – Terminal Block, 2Pole, 15A 300V Feed Thru Solder Deal

Marathon Kluka – 599GP200402PSB – Terminal Block, 2 Pole, 15A 300V Feed Thru Solder

Housing Gender: 2 Position (2 x 1).

Voltage Rating: 150 V (AC/DC) Class C

Voltage Rating: 300 V (AC/DC) Class B

Currrent Rating: 15 A

Base, Phenolic, 150oC (UL RTI)

Open Back Design JJ (GDI-30F) Material Available

Screws, #5-40 Binder Head, Slot, Brass

Terminals, Plated Brass

Wire Range with Wire Binding Screw   #16 – #22 AWG

UL Recognized File No. XCFR2.E47811

CSA Certified File No. LR19766

RoHS Compliant

Mounting Type: 2 Hole Mount 1.12″ centers.

Pin Spacing: Approximately 0.40″ (3/8″).

Outside Dimensions: 1.41″” Long x 0.56″ Wide x 0.41″ High.

Black.

New Old Stock

UL, CSA
