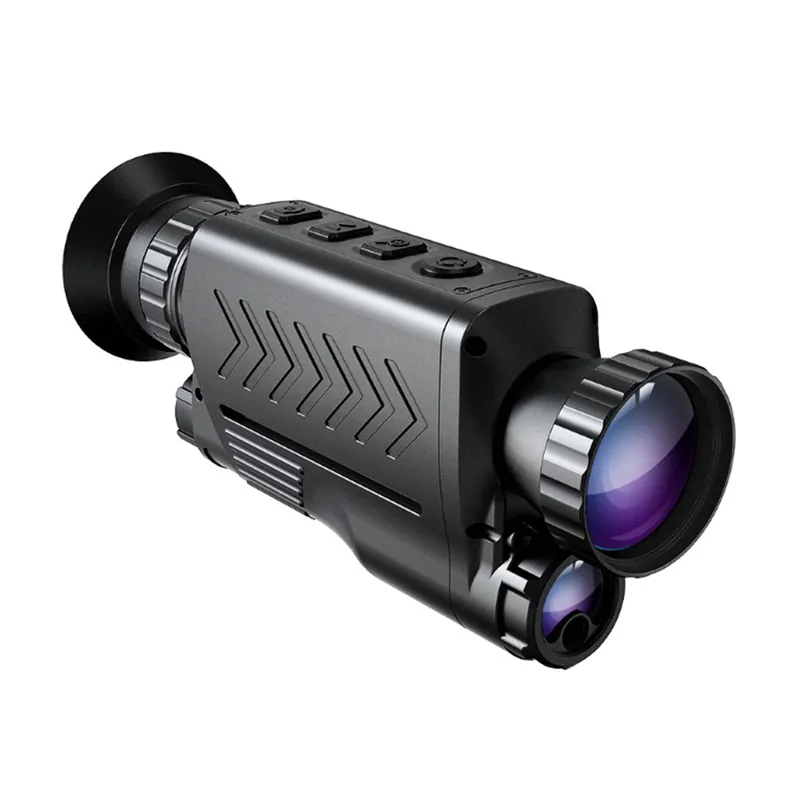

Money Back Guarantee Topdon TS005 Advanced Thermal Monocular Camera – TOPDON

Specifications

The TOPDON TS005 Advanced Thermal Monocular Camera offers robust technical specifications for professional use. It features an Infrared (IR) resolution of 384×288 pixels and a 35mm adjustable focal length lens, enabling clear thermal imaging. The device is equipped with a 12?m pixel interval and a Noise Equivalent Temperature Difference (NETD) of less than 35mK for high thermal sensitivity. Visual output is delivered via a 1024×768 OLED display, ensuring sharp visuals.

It provides an impressive detection range of up to 1400 yards (1280m) for spotting heat signatures. An integrated laser rangefinder accurately measures distances up to 650 yards (594m). Users can zoom in on distant objects with 1x, 2x, 4x, and 8x digital magnification. The field of view is 10.4° × 7.9°, and the frame rate is 50Hz for smooth tracking of moving targets.

Power is supplied by two replaceable 18650 rechargeable batteries, offering up to 6 hours of continuous operation with quick-swap, no-polarity design. The monocular includes 64GB of built-in memory for storing images and video recordings. Constructed with a durable aluminum alloy housing, the TS005 is IP65 rated for water and dust resistance, and operates within a temperature range of -4? to 131? (-20? to 55?). It weighs approximately 0.88 lbs (400g) and measures 6.7 × 3.1 × 2.1 inches (170 × 78 × 54 mm).

Key Features

• Advanced Thermal Imaging: Captures clear, detailed thermal images with 384×288 IR resolution and a high sensitivity NETD of less than 35mK, ensuring superior image clarity and differentiation of heat sources. A 50Hz frame rate allows for fluid tracking of moving targets.
• Integrated Laser Rangefinder: Accurately measures distances up to 650 yards (594m) to targets, even in challenging weather conditions like fog, rain, or snow, supported by an adjustable crosshair system.
• Long-Range Detection & Zoom: Identifies heat variations up to 1400 yards (1280m) with its 35mm adjustable lens and provides up to 8x digital zoom for close-up observation of distant objects.
• High-Resolution OLED Display: Features a 1024×768 OLED screen for vivid and precise rendering of thermal images, bringing scenes into sharp focus. An adjustable eyepiece accommodates users, including those with myopia.
• Versatile Color Palettes: Offers five distinct thermal color palettes—White-Hot, Black-Hot, Red-Hot, Iron, and Rainbow—to optimize viewing for various environments and target identification needs.
• Stealth Operation: Designed with silent controls and no indicator lights, enabling discreet observation without revealing the user’s position.
• Robust and Durable Construction: Features a matte black anodized aluminum alloy body, providing IP65 waterproof and dust-proof protection against shocks, drops, and corrosion for reliable use in demanding outdoor conditions.
• Extended Battery Life & Storage: Equipped with two rechargeable 18650 batteries providing up to 6 hours of runtime, with a no-polarity design for quick and easy field swaps. A 64GB internal memory stores over 2 million images or hours of video with audio.
• Built-in Compass: Includes an integrated compass for enhanced directional awareness during navigation and surveillance.

Applications

The TOPDON TS005 Advanced Thermal Monocular Camera is engineered for diverse professional and enthusiast applications demanding superior thermal imaging capabilities.

• Wildlife Observation and Hunting: Allows users to spot and track animals in low-light conditions, dense foliage, or complete darkness, aiding in ethical hunting and wildlife research.
• Search and Rescue Operations: Facilitates the rapid location of individuals in challenging environments, including smoke, fog, or darkness, significantly enhancing response efficiency.
• Law Enforcement and Surveillance: Provides a critical tool for covert operations, perimeter security, and suspect tracking, enabling precise observation without detection.
• Property and Perimeter Monitoring: Assists in securing remote properties, farms, or cabins by detecting intruders or monitoring livestock across vast landscapes.
• Outdoor Adventure and Exploration: Supports navigation and safety during nighttime excursions, camping, and other outdoor activities by identifying potential hazards or wildlife.

Benefits

• Enhanced Situational Awareness: Detects heat signatures across challenging terrains and in low-visibility conditions, providing a crucial advantage for navigating and observing environments where traditional vision is limited.
• Accurate Distance Measurement: The integrated laser rangefinder delivers precise distance information, enabling informed decision-making for targeting, navigation, or safety without estimation.
• Clear and Detailed Observation: High-resolution thermal imaging combined with digital zoom ensures that even distant targets appear with remarkable clarity, improving identification and tracking capabilities.
• Extended Operational Readiness: With a 6-hour runtime and easily swappable, no-polarity batteries, the monocular supports prolonged field operations without interruption.
• Reliable Performance in Harsh Conditions: Its rugged, IP65-rated aluminum alloy construction ensures durability and consistent performance across diverse and demanding outdoor environments.
• Discreet Operation: Silent controls and the absence of indicator lights allow for covert use, maintaining the user’s concealment during critical surveillance or observation tasks.
• Comprehensive Data Capture: The generous 64GB internal storage enables extensive recording of high-resolution images and videos with audio, facilitating thorough analysis and documentation after an operation or observation.
