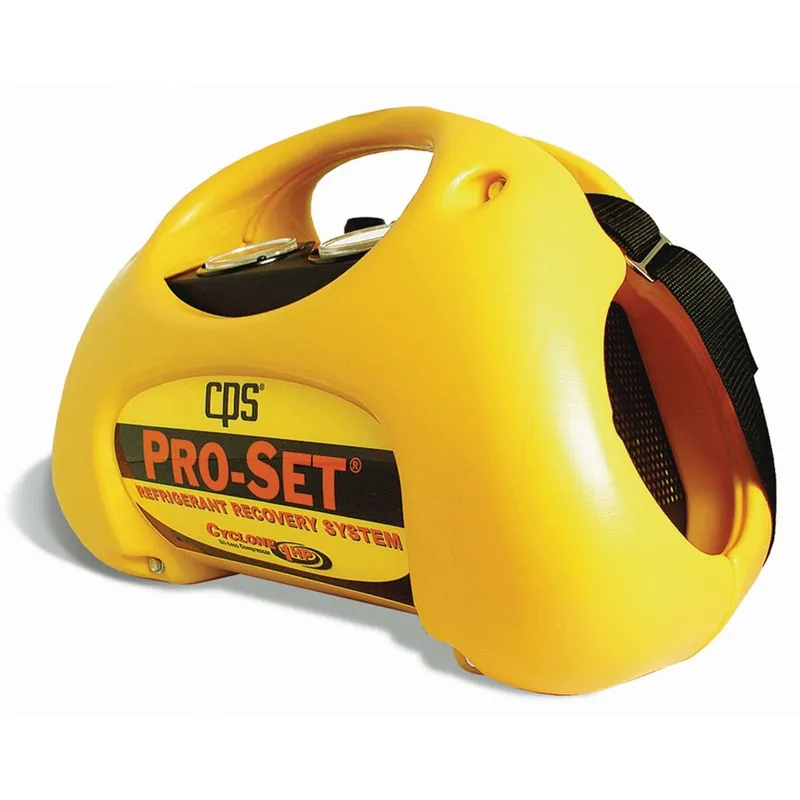

Oil-Less Refrigerant Recovery Machine – CPS Products Next Day Delivery

Specifications

• Manufacturer: CPS Products
• Model Number: CR700
• Weight: 36 lbs
• Dimensions: 14-1/2 inches Length x 8 inches Width x 12 inches Height (37 cm Length x 20 cm Width x 30.5 cm Height)
• Compressor: 1 HP (0.85 kW) oil-less reciprocating compressor
• Power: 115 VAC, 50/60 Hz, 15 A, 850 W
• Operating Temperature Range: 32 to 120 degrees F (0 to 49 degrees C)
• High Pressure Shut-off: 550 psig (38 bar)
• Discharge Pressure Gauge: 0 to 800 psig (0 to 55 bar)
• Suction Pressure Gauge: -30" hg to 350 psig
• Refrigerant Compatibility: R-12, R-134a, R-410A, and other A2L refrigerants
• Filter: Cleanable 100-mesh screen filter

Key Features

• Oil-Less Reciprocating Compressor: Features a powerful 1 HP oil-less compressor designed to maximize speed in both direct liquid and direct vapor recovery, minimizing maintenance and preventing oil contamination.
• "On the Run" Self-Clearing Valve: Enables switching from recovery to self-clearing without turning off the unit, ensuring quick preparation for the next refrigerant type and preventing cross-contamination.
• High Capacity Condensing System: Equipped with high airflow and a high-efficiency condensing system to optimize vapor recovery speed, even in high-temperature environments.
• Automatic Low Pressure Shut-off: Automatically turns the unit off once the recovery is completed or a 10" hg vacuum is achieved, promoting efficient operation and preventing air introduction into the system.
• R-410A Ready: Features a 550 psig high-pressure shut-off switch, making it suitable for high-pressure refrigerants like R-410A.
• Rugged Construction: Built with a heavy-duty powder-coated aluminum chassis encased in a tough, high-density polyethylene case for durability and protection in demanding environments.
• Integrated Carrying Handle: Provides an ergonomic, well-balanced design for easy transport and portability.
• Built-in Suction Filter: Features an easy-to-access, replaceable, or cleanable 100-mesh screen filter located under the suction port, which helps protect the recovery machine from debris and contaminants.
• On-board Gauges: Includes suction and discharge gauges for monitoring system pressures during operation.

Applications

The CPS Products CR700 Oil-Less Refrigerant Recovery Machine is engineered for professional use in various refrigerant management scenarios. It is an essential tool for technicians performing maintenance, repairs, or decommissioning of cooling systems.

• Residential HVAC Systems: Efficiently recovers refrigerants from home air conditioning units and residential refrigeration systems.
• Commercial Refrigeration: Ideal for use in commercial refrigeration equipment found in retail, restaurants, and other business environments.
• Automotive Air Conditioning: Suitable for recovering refrigerants from vehicle AC systems.
• Industrial Cooling Systems: Capable of handling recovery needs in various industrial cooling applications.

Benefits

• Enhanced Efficiency: Delivers fast recovery rates for both liquid and vapor refrigerants, reducing job time and improving workflow efficiency.
• Environmental Compliance: Facilitates responsible refrigerant handling by preventing the release of harmful refrigerants into the atmosphere, aligning with EPA regulations.
• Reduced Maintenance: The oil-less compressor design eliminates the need for oil changes and reduces the risk of lubricant contamination, contributing to the machine’s longevity and reliability.
• Versatile Refrigerant Handling: Compatible with a wide range of refrigerants, including R-12, R-134a, and R-410A, offering flexibility for diverse service requirements.
• Ease of Use: Features like "On the Run" self-clearing and automatic low-pressure shut-off simplify operation, making it user-friendly for qualified personnel.
• Durability and Portability: Constructed with a rugged, high-density case and an integrated carrying handle, the unit is built for demanding job sites and easy transportation.
