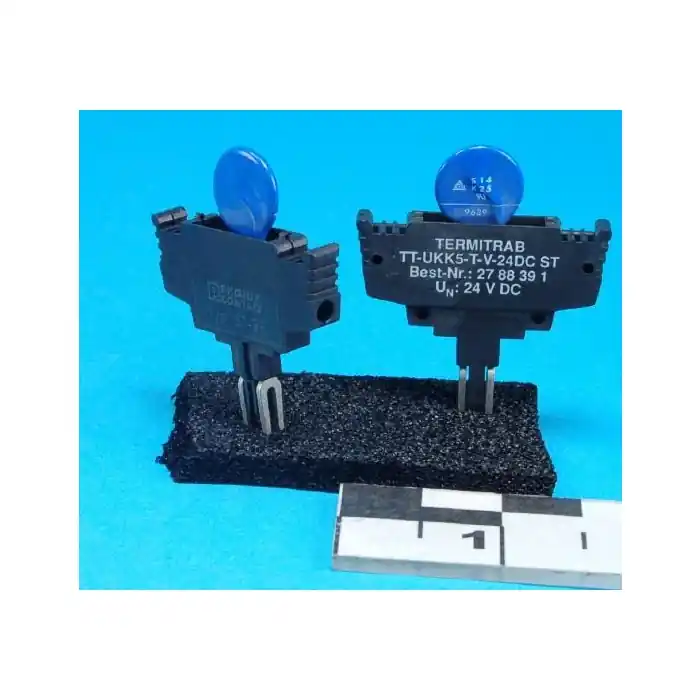

Phoenix Contact – TT-UKK5-T-V-24DC ST – Termitrab/Surge Protector. Plug 2788391 Reduced Price

Phoenix Contacts – TT-UKK5-T-V-24DC ST, Plug 2788391

The TT-UKK5-T-V-24DC-ST Series is a protective plug with varistor to plug onto base element TT-UKK5-T-BE. (Termitrab). The TT-UKK5-T-V-24DC-ST can be used in the signal circuits of electronic controllers. Screw connection, surge protection connector with a Siemens S14K25 varistor. ST-BE, 2802316.

Status; Discontinued – Replacement 2906841

IEC test classification/VDE requirement class: C1, C3

Nominal voltage UN: 24 V DC

Maximum continuous voltage UC: 31 V DC, 25 V AC

Rated current: 26 A (40 °C)

Operating effective current IC at UC: ≤ 150 µA

Nominal discharge current In (8/20) µs (line-line): 350 A

Total discharge current Itotal (8/20) µs: 350 A

Max. discharge current Imax (8/20) µs maximum (line-line): 1 kA

Nominal pulse current Ian (10/1000) µs (line-line): 25 A

Residual voltage at In (line-line): ≤ 130 V

Response time tA (line-line: ≤ 25 ns

Capacity (line-line): typ. 4.6 nF

Impulse durability (line-line): C1 – 500 V / 250 A, C3 – 10 A

Dimensions: Height 52 mm X Width 6.2 mm X Length 41.5 mm

Weight: 8.120 g (0.960 Ounce)

Operating Temperature: -40 C to 60 C, IP20

Country of Origin: Greece

Alternate/Replacement/Supercession: 2906841
