Sale!
Place Order ASCO - Automatic Switch Co - HV1744762 - Red Hat - 3-Way Solenoid Valve 15PSI Air, Inert Gas, Water, 1/4"NPT 120VAC
Home / Electrical / Place Order ASCO – Automatic Switch Co – HV1744762 – Red Hat – 3-Way Solenoid Valve 15PSI Air, Inert Gas, Water, 1/4"NPT 120VAC

Place Order ASCO – Automatic Switch Co – HV1744762 – Red Hat – 3-Way Solenoid Valve 15PSI Air, Inert Gas, Water, 1/4"NPT 120VAC

Original price was: $48.98.Current price is: $24.49.

For orders under $59.00, a shipping fee of $12.99 applies.

SKU: SK0014494-US20260109-115055 Category: Tag:
Share

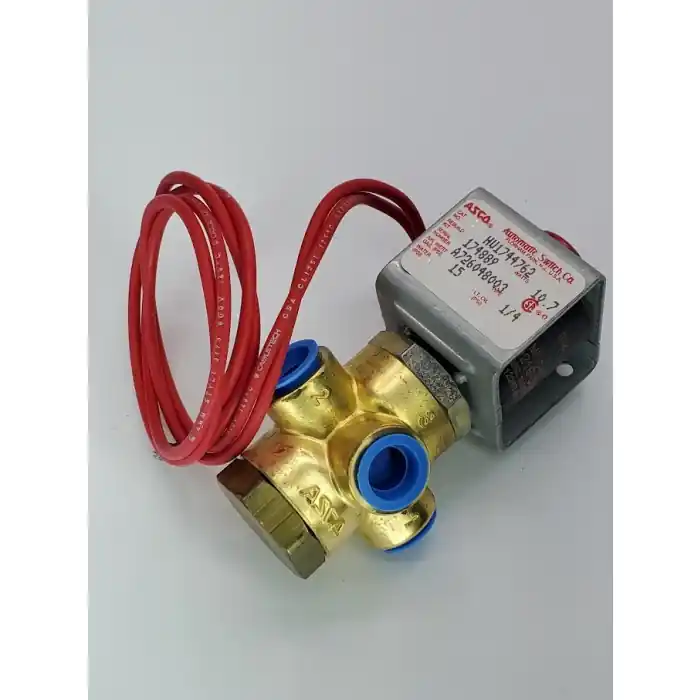

ASCO – Automatic Switch Co – Model – HV1744762 – Red Hat Solenoid.

Small 3-way solenoid operated valve with all three pipe connections located in the body. NEMA Type I Solenoid Enclosure. Valves are equipped with a NEMA Type 4 Watertight Enclosure.

Commercial – General Purpose

Body Design: 3 Way Solenoid Valve

Coil Voltage: 120VAC/60Hz, 110VAC/50Hz

Coil Type: B94, P/N: MP-C-011, 099216-005D, 2 Wire.

Wattage: 10.7 W

Solenoid Enclosure: Watertight

Pressure: 15 PSI Air, Inert Gas & Water.

Material: Brass Valve

Maximum  Fluid Temperature: 200 F

Approximate Lead Length: 18″

1/4″ PIPE Three-Way Operation: Normally Open & Normally Closed.

Uses Rebuild Kit 174889 D-7240 DS-796

Dimensions: 45x37x91mm High Including Coil.

Coil: 35x40mm Int. 120V 60Hz 10.7W Ind.

Boxed with Instructions – New Old Stock.

A 726048003 CSA

Proudly Made in USA
