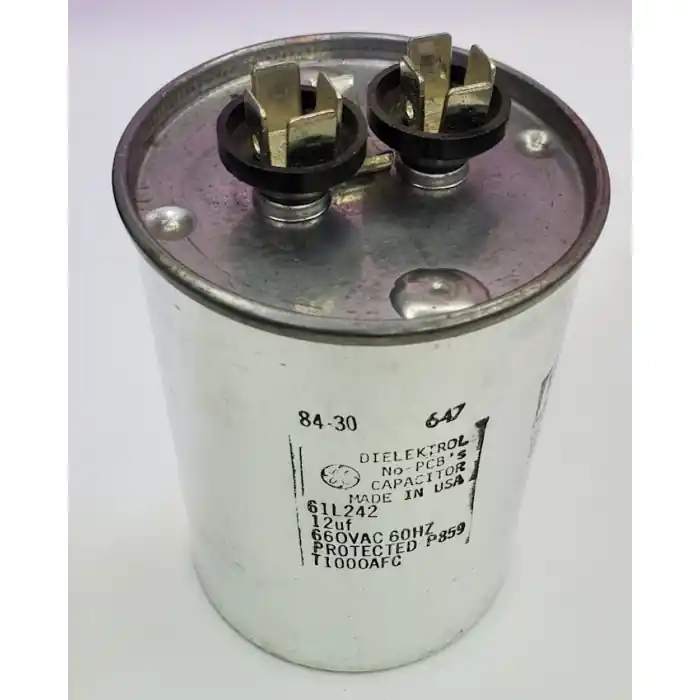

Special Discount GENERAL ELECTRIC – 61L242 – Capacitor, Oil-Filled. 12uF 660VAC 60Hz.

GENERAL ELECTRIC – 61L242 – Capacitor, Oil-Filled.

Motor Run Capacitor are is used in single-phase motors to maintain a running torque on an auxiliary coil while the motor is loaded. A run capacitor is an energy-saving device that is in the motor circuit at all times. If a run capacitor fails, the motor can display a variety of problems including not starting, overheating, and vibrating. A bad run capacitor deprives the motor of the full voltage it needs to operate correctly.

Capacitance: 12uF

Voltage 660VAC 60Hz.

Dielektrol No PCB’s. –  DIELEKTROL® – VIIa FLUID. SYNONYM(s): DK-VIIa. GENERAL USE: Insulating Oil for High-voltage Capacitors. CHEMICAL FAMILY: Alkyl Aryl Alkanes.

Protected P859 T1000AFC 3043713 max.

Operating temperature: 70 Deg C.

Shape: Round

Dimensions: 2.5″ Diameter x 4″ Tall Including Quick Connect Terminals. 3.465″Height Minus QC

Alternates: 27L60118, 37KD6612A, SfC66S12K391B

Note: When Substituting capacitor check envelope size and match Capacitanace and operating voltage.

Made in USA
