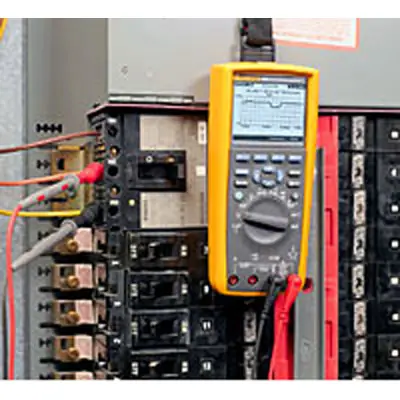

While Supplies Last True-RMS Industrial Logging Multimeter w/ TrendCapture – Fluke

Applications:

• Electrical troubleshooting
• Electronics
• Power distribution
• Machine maintenance
• Process control
• Motor winding resistance

Benefits:

• Large 50,000 count display with white backlight
• Logging function with TrendCapture
• i-info button for on-board help screens
• LoZ Volts for accurate voltage measurements
• Low Pass Filter for accurate voltage and frequency measurements
• 50 ohm range for measuring and comparing differences in motor winding resistance
• Saved measurements for naming and recalling measurements made in the field
• Real Time Clock for automatic time stamping of saved readings
• Field upgradeable and expandable meter
• Multi-lingual interface
• Min/Max/Average with Time Stamp to record signal fluctuations
• Soft keys, scroll buttons and easy navigation control access to secondary functions
• 0.025% Basic DC accuracy
• 100 kHz ac bandwidth
• True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads
• Measure up to 10A (20 A for 30 seconds; 10A continuous)
• 100 mF capacitance range
• Temperature function
• Relative mode to remove test lead resistance from low ohms or capacitance measurements
• Peak capture to record transients as fast as 250 ?s
• Premium test leads and alligator clips included
• Optical USB PC communication interface allows for easy PC download to document logged data with FVF software
• Optional FlukeView forms enables you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
• Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job
• Limited lifetime warranty
• CAT III 1000 V / CAT IV 600 V safety rated
